What This Product Is Actually For

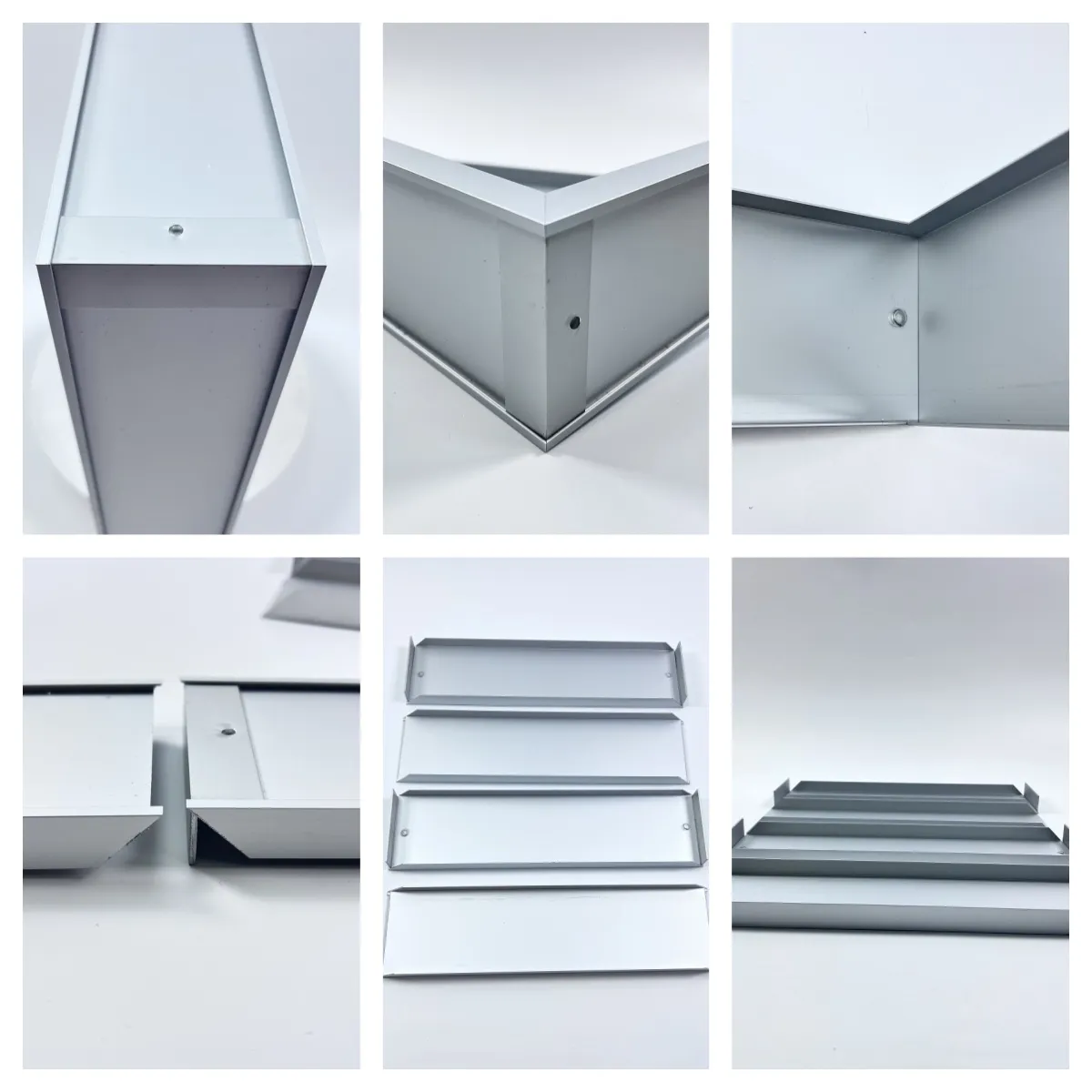

An HVAC filter holder frame is used to position, support, and seal an air filter inside an air handling system.
Its role is simple but important. A filter can only perform properly when it is installed in a frame that holds it in the correct position, limits bypass air, and allows maintenance teams to replace it without damaging either the filter or the housing.
This type of frame is commonly used in:
•air handling units
•ventilation cabinets
•retrofit filter sections
•side-access or front-access filter installations
It is not a complete filter rack system, and it is not a terminal HEPA module. It is a supporting installation component that helps standard or customized filters work correctly inside the system.
Technical Specifications (Core Parameters)
| Parameter | Typical Specification |
|---|---|
| Product Type | HVAC Filter Holder Frame |
| Main Function | Filter positioning, support, and sealing assistance |
| Application Direction | AHU systems, ventilation units, retrofit installations |
| Material Options | Aluminum / Galvanized steel / Stainless steel |
| Installation Style | Front access / Side access / Cabinet integration |
| Size Option | Standard or customized |
| Structural Role | Supports secure filter seating and easier maintenance |
| Customization | Frame size, profile, material, and installation detail |
Why a Holder Frame Matters More Than It Seems
In many projects, the filter gets all the attention while the holder frame is treated as a small accessory.
In actual operation, poor frame selection often leads to practical problems such as:
•filters sitting unevenly inside the housing
•air bypass around the filter edge
•more difficult replacement during maintenance
•loose installation after repeated servicing
•mismatch between filter size and opening size
A properly designed holder frame helps avoid these issues by creating a more stable and repeatable installation condition.
That is why this product should not be treated as a minor part. It affects sealing, servicing, and how reliably the filter performs inside the equipment.
Where This Type of Frame Fits Best
This type of frame is most useful in systems where filters need to be installed securely and replaced regularly.
It is especially practical in situations such as:
•AHU Filter Sections
Where filters must remain aligned and properly sealed under working airflow.
•Retrofit Installations
Where the existing opening does not match a ready-made filter arrangement and a holder frame helps adapt the installation.
•Side-Access Maintenance Designs
Where maintenance teams need a frame that keeps replacement simple and repeatable.
•Projects Using Standard or Customized Filter Sizes
Where the installation frame must match the real filter size rather than relying on a loose-fit arrangement.
The key value is not the frame by itself, but how it improves filter installation inside the system.
How It Differs from Other Filter Frame Types
•Holder Frame
A holder frame is mainly used to support and position the filter inside an AHU, cabinet, or retrofit section.
•Gel-Seal or Knife-Edge Frame
These are generally associated with cleaner or more specialized HEPA installation methods and are not the same as a general HVAC holder frame.
•Decorative or Light-Duty Outer Frame
Some frames are mainly used as outer borders or simple mounting trims. They do not necessarily provide the same holding and sealing function.
•Complete Filter Rack or Track System
A rack system is a larger assembly that may include tracks, clips, or multiple-stage holding arrangements. A holder frame is more focused and local in function.
So this product should be understood as a functional installation frame, not a general frame category for every filter application.
Product Certification
ISO 9001 Certification: It shows our production process follows international quality standards, ensuring the consistency and high quality of our Hvac filter holder frame.
CE Certification: It means our products meet the EU's safety, health, and environmental requirements and can be safely used in the European market.
UL Certification: It indicates our brackets have passed the strict safety and performance tests of Underwriters Laboratories, ensuring their reliability.
Packaging and Transportation
Packaging
Our HVAC filter brackets / frames ship in custom-fitted export cartons with shock-absorbing foam, bubble wrap, and corner guards to prevent scratches and impact damage. Each unit is poly-bagged with desiccant and labeled with HS code, lot/QR traceability, and airflow orientation; cartons are 5-ply, shrink-wrapped, and palletized on ISPM-15 heat-treated pallets (eye-to-sky/eye-to-side) to reduce corrosion risk in transit.
Transportation
We partner with global forwarders for sea freight (FCL/LCL), air freight, and express courier (DHL/UPS/FedEx), selecting routes by deadline and budget. Incoterms supported: EXW, FOB, CIF, DAP, DDP; options include cargo insurance, booking & tracking (AWB/BL), and loading photos. Full documentation (commercial invoice, packing list, MTC/COC if applicable, COO, RoHS/CE/ISO statements) streamlines customs.
What the Frame Is Expected to Solve
A good HVAC filter holder frame is expected to solve several real installation problems at once.
Filter Positioning
The frame helps keep the filter seated properly and reduces movement after installation.
Sealing Support
It helps create a cleaner fit between filter and housing, reducing the risk of bypass air.
One-stop Solution
A better holder frame allows the filter to be removed and inserted more consistently during maintenance.
Retrofit Adaptation
It can help bridge the gap between existing cabinet conditions and the actual filter size being used.
For many buyers, these four points matter more than decorative details or broad marketing claims.
Why This Product Has a Real Use Value
An HVAC filter holder frame is not a decorative accessory.
It becomes valuable when the project needs:
•a cleaner filter fit
•more stable replacement behavior
•reduced bypass risk
•better adaptation to real AHU or retrofit conditions
•That is its real function.
•The value of the product is not in sounding advanced.
It is in making ordinary filter installation more reliable.
