Products details

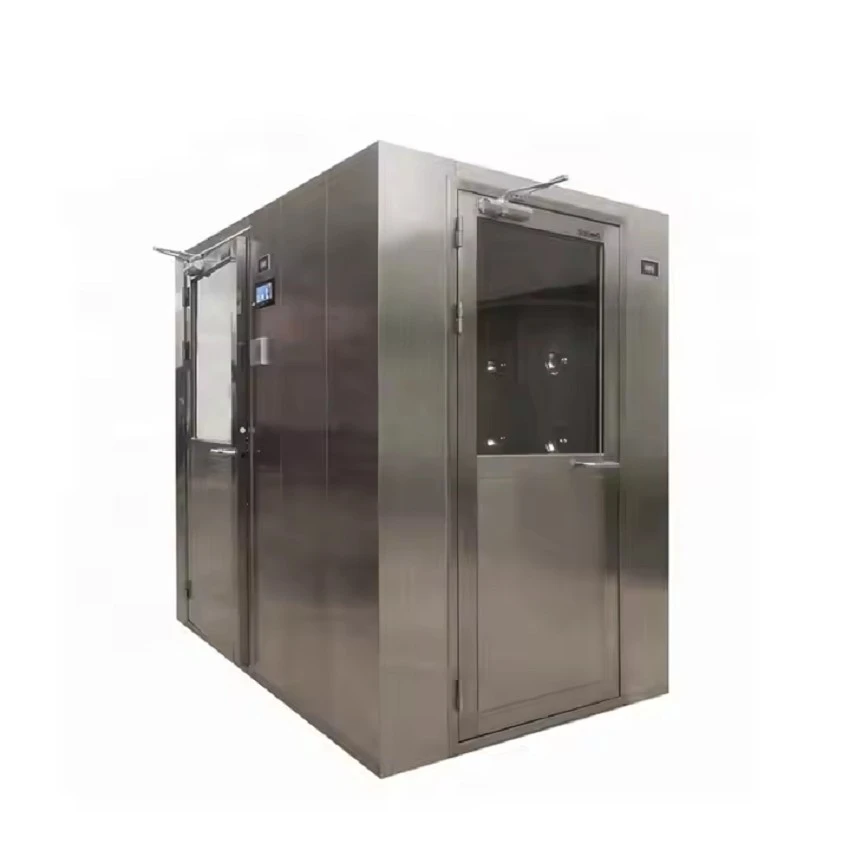

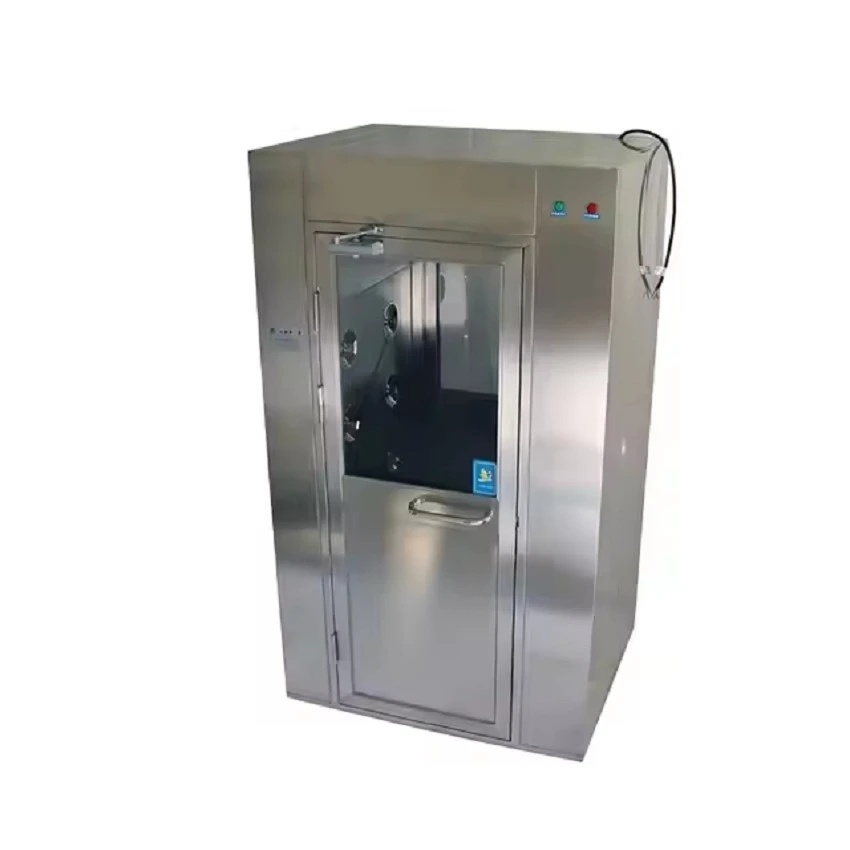

Air showers are typically installed at the entrances of cleanrooms or other environments where strict control over airborne particulate matter is required. From the moment of entry, they assist in removing loose particles adhering to personnel's bodies before permitting them to proceed to the next zone. This specific model is designed expressly for personnel transit and features a high-velocity recirculating airflow system-filtered via HEPA technology-along with an automatic door interlock mechanism. It offers a variety of configuration options to accommodate diverse facility layouts. Key features include: adjustable air velocities ranging from 20 to 25 m/s; a minimum of 24 high-quality stainless steel nozzles; an H14-grade HEPA filtration system (preceded by M6-grade primary filters); and high-speed PVC roll-up doors equipped with an automatic interlock function.
Technical Specifications (Core Parameters)
Air velocity: 20–25 m/s, adjustable
Nozzle configuration: 24+ stainless steel air jets
Filtration: H14 HEPA + M6 pre-filter
Door system: automatic interlocking PVC rapid roll-up doors
Power supply: 380V / 50Hz, customizable for project requirements
Available materials: 304 or 316L stainless steel, subject to final project configuration
These values are already stated on the current product page and can remain as the public reference specification, provided they match the actual offered configuration.
How the Booth Works
During operation, high-velocity filtered air is delivered through multiple nozzles to dislodge loose dust and particles from garments, gloves, and footwear. The air is then drawn back into the system, filtered again, and recirculated. This operating principle is consistent with how established cleanroom equipment manufacturers describe air showers for personnel and material transfer.

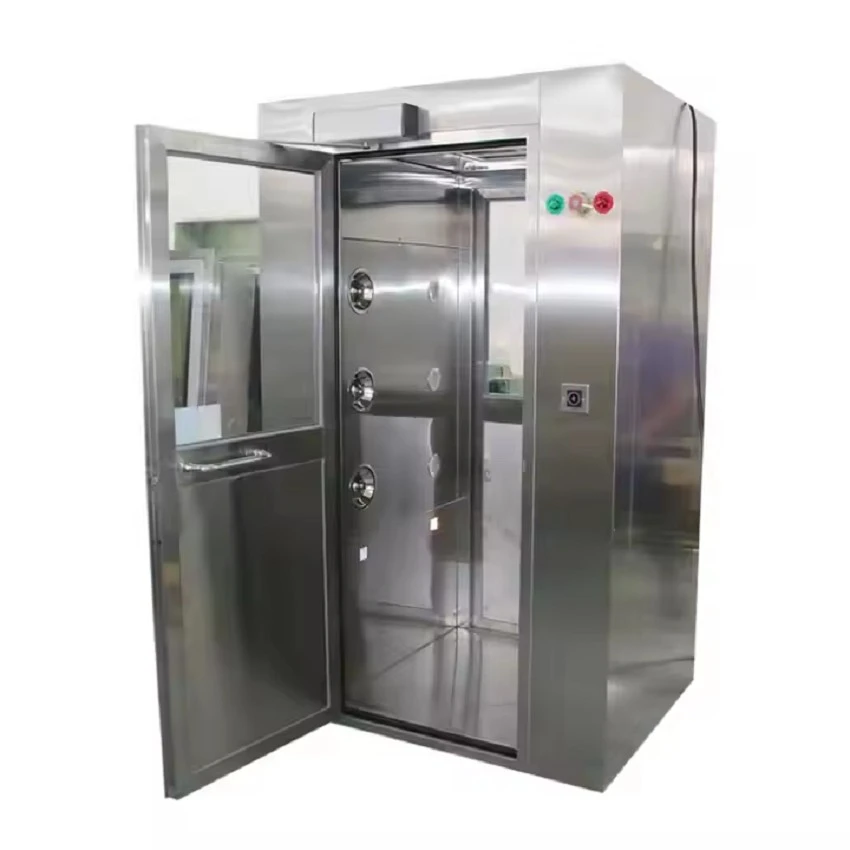

The booth uses an automatic door interlock to prevent both doors from opening at the same time. For personnel entry points, this helps maintain transfer discipline between the less controlled side and the cleaner side. Interlocked doors are a standard and important feature on mainstream air shower systems.
Configuration Options
This air shower booth can be configured to suit different entry layouts and operating needs. Typical options may include:
single-person or larger transfer formats
straight-through or tunnel-style arrangement
304 or 316L stainless steel construction
door and viewing-window options
power supply adaptation for destination country
layout adjustment for project drawings and available airlock space
These kinds of customization points are also commonly presented by established suppliers such as Terra Universal, especially where floorplan and installation constraints differ by project.
Design, Controls, and Operator Experience
This air shower room uses a proprietary pulsed jet nozzle array to deliver even shear coverage across the body while maintaining a quieter user experience through a soft-start blower pack. Inside, the cabin uses 304 stainless steel interior panels with antimicrobial powder coat and smooth, easy wipe-down surfaces to support hygiene-focused applications. A low-profile base improves entry comfort and reduces trip/fatigue risk in repetitive-use areas.
For daily operation, motion-activated entry options, traffic-light guidance, and a touchscreen HMI make the cycle clear and consistent for staff. Door interlock logic is built in to prevent simultaneous opening and help maintain pressure/airflow discipline at the transition point.
Options and Customization (OEM/ODM Ready)
To match different cleanroom layouts and compliance needs, we support configuration on:
- Material choices: 304 / 316L stainless steel cabins for high-hygiene zones, or anti-static PP (ESD-safe) shells for solvent/chemical handling areas
- Layout integration: drop-in compatibility with softwall cleanrooms and rigid-wall rooms; left/right-hand door swing options
- Accessibility & visibility: ADA-friendly ramp, windowed doors
- Special garments & workflows: custom nozzle mapping for specialty garments
If your project requires a longer "air shower tunnel" style walkway, multi-user cycles, or non-standard footprints, send your drawing and target capacity-our team can propose a build that fits your airlock dimensions and traffic flow.
Global Compliance & Certifications
• ISO 9001:2015 (Quality Management)
• CE EMC/LVD Directives (EU Safety)
• NSF/ANSI 49 (Biosafety Cabinetry Integration)
Deployment Scenarios
Pharmaceutical Airlocks
Pair Air shower booth with garment dispensers for full gowning compliance.

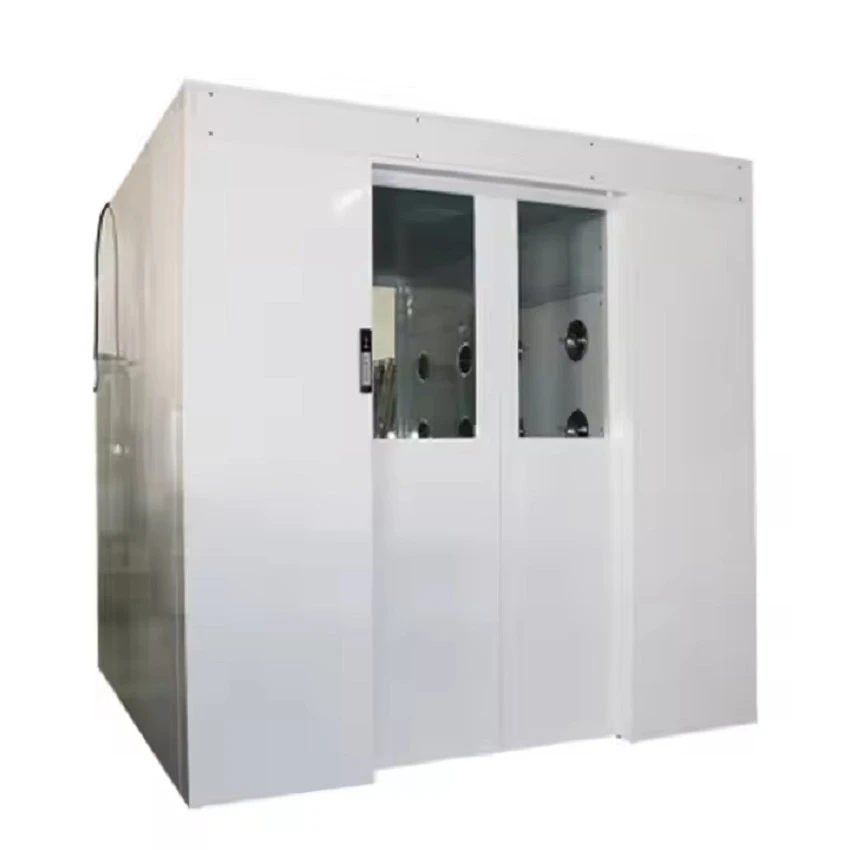

Food Packaging
Eliminate allergen cross-contamination between production zones.
Aerospace R&D
Protect composite material layup areas from fiber debris.
What Buyers Should Confirm Before Ordering
To reduce back-and-forth during quotation, buyers should confirm:
number of operators per shift change
available installation size and transfer direction
clean side / less-clean side layout
required door type and interlock logic
material preference: 304 or 316L stainless steel
local power supply and control requirements
whether the booth is for personnel only or for larger transfer/tunnel use
documentation required for FAT, wiring, and installation
FAQ
Q: What cleanroom standard does this air shower booth support?
A: Factory answer: Our air shower booth is designed for ISO cleanroom entry control and is stated to comply with ISO 14644-1 Class 5 and GMP Annex 1 requirements, depending on the selected configuration and site validation.
Q: What is the air velocity range? Is it adjustable?
A: Factory answer: Yes. The unit provides 20–25 m/s air velocity, and it is adjustable to match your gowning process, room layout, and comfort requirements.
Q: What filtration grade do you use?
A: Factory answer: Standard filtration is H14 HEPA combined with an M6 pre-filter to protect the HEPA and extend service life.
Q: How many people can pass in one cycle?
A: Factory answer: With modular linking and suitable layout, the system can be configured to handle up to 6 users per cycle as referenced on the product page, depending on booth size and site procedures.
Q: What door type is used? Do you support interlock?
A: Factory answer: Standard is automatic interlocking PVC rapid roll-up doors. The interlock logic prevents both doors opening at the same time, reducing cross-draft contamination risk.
Q: What power supply is required?
A: Factory answer: Standard supply is 380V/50Hz, and we can customize power specifications to match your country's electrical standard.
Q: What materials are available for the booth?
A: Factory answer: We offer 304 / 316L stainless steel for high-hygiene cleanroom environments, and anti-static PP (ESD-safe) options for specific chemical/ESD-related applications.
Q: How do you verify performance and reliability before shipment?
A: Factory answer: The product page references particle challenge audits and 500+ door cycle simulations per unit. We also provide standard factory QC checks and functional testing prior to shipment (test scope depends on the final configuration).
