Paint Booth Ceiling Filters

In actual operation of spray booths, many problems are not caused by the spray gun itself, but rather by unstable filtration in the top air supply section.

For example:

•Paint mist particles enter the air supply circulation, affecting the cleanliness of the sprayed surface.

•What problems does this product primarily solve?Filter material clogs too quickly, causing a rapid increase in pressure differential.

•What problems does this product primarily solve?Unstable airflow leads to poor airflow distribution in the spray booth.

•Frequent filter replacement increases maintenance costs.

•Insufficient capacity to handle water-based paints or high-viscosity paint mist.

The design logic of HBDPA ceiling filter is centered around these practical problems. It's not a "use it first, worry later" material like ordinary flat filter; it's a top filtration solution more suitable for continuous spraying conditions.

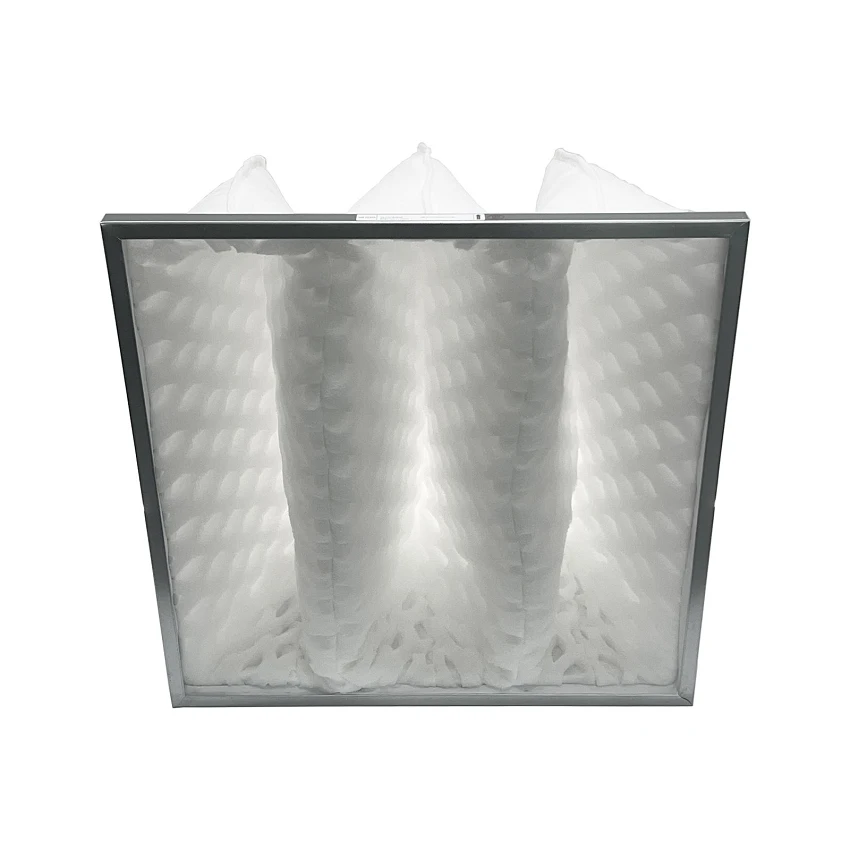

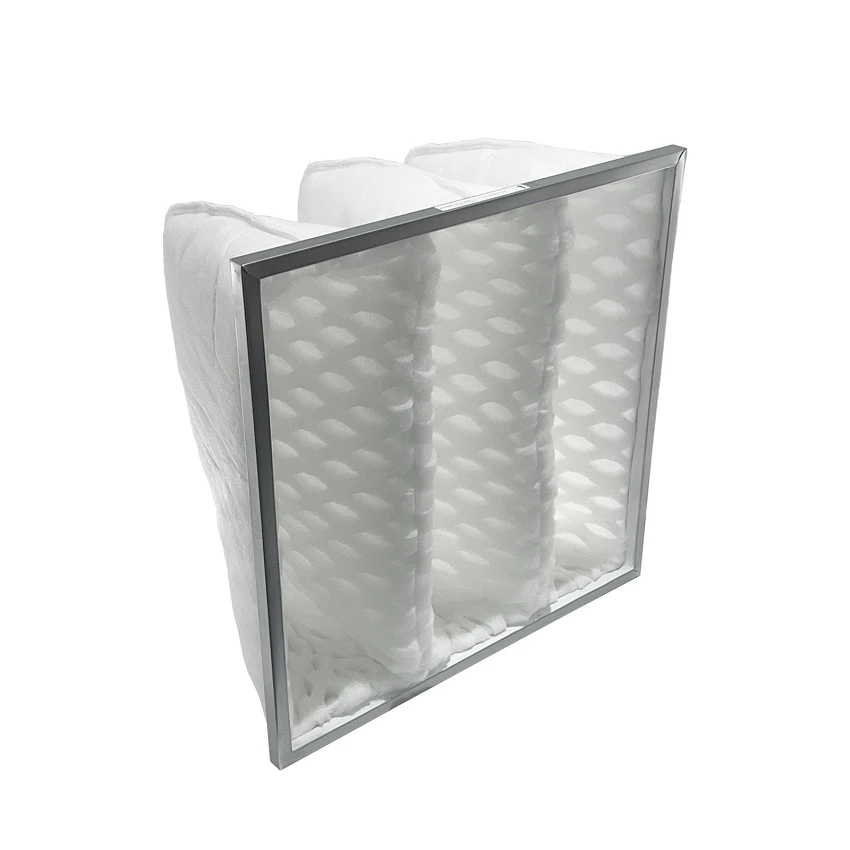

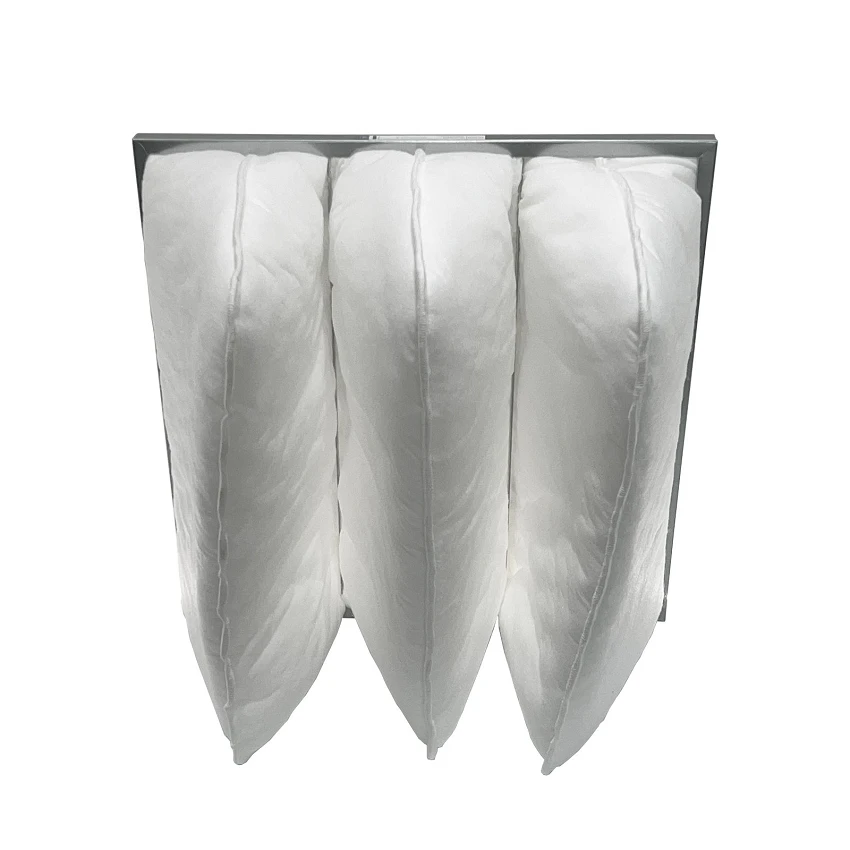

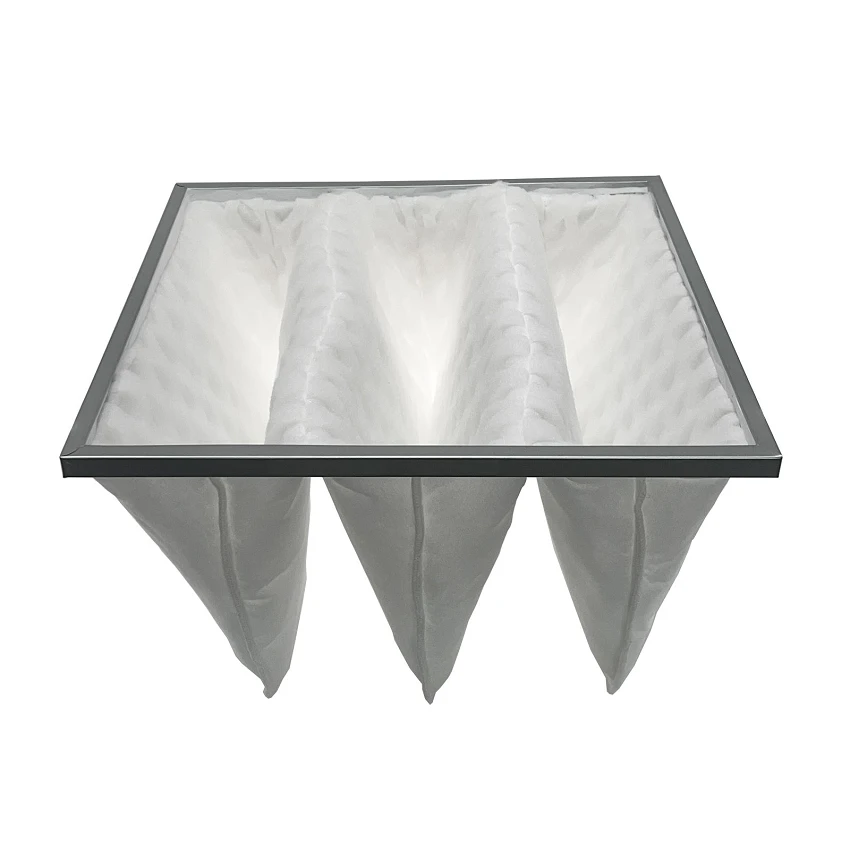

This product uses a three-dimensional diamond pocket structure, rather than a simple flat cotton padding.

This design has a very practical advantage:

•It allows air to be distributed more evenly as it passes through the filter media. Paint mist particles don't just accumulate in one area on the surface; instead, they are gradually intercepted over a larger effective filtration area.

•What does this mean?

It means that under continuous spraying conditions, it's less likely to experience a situation where "the surface quickly becomes clogged before the interior is truly utilized."

•It also means a larger filtration area, stronger dust holding capacity, and a slower pressure drop, allowing the entire spray booth system to maintain a relatively stable operating state for a longer period.

From the perspective of independent product presentation, this is where it should most differentiate itself from ordinary ceiling cotton:

It's not just about filtration; it's about delaying clogging and extending stable operating time through structural design.

Spray booths use various media, and different customers face different forms of contamination.

Some booths primarily handle powder particles, others wet paint mist, and still others process water-based paints, high-viscosity paints, or multi-component coatings.

The advantage of this HBDPA ceiling-mounted paint mist filter cotton lies in its ability to handle various spraying contaminants, not just particles under "ideal" conditions. It is particularly suitable for:

•Water-based paint spraying environments

Water-based paint particles are more prone to forming adhesive contaminants under high humidity conditions, requiring higher structural stability from ordinary filter media. HBDPA ceiling-mounted cotton has good water resistance and is less likely to fail rapidly due to moisture absorption under these conditions.

•High-viscosity paint environments

For paint mist particles with strong adhesion that easily clog the filter media surface, the pocket structure of this product is more effective in distributing the load and preventing excessive surface clogging.

•Multi-component spraying systems

In these operating conditions, the morphology of airborne particles is more complex. Relying solely on ordinary flat cotton often makes it difficult to balance efficiency and lifespan, while HBDPA ceiling cotton offers advantages in overall load-bearing capacity.

•Solid paint and powder coating environments

In systems with high levels of particulate contaminants, it can help improve the cleanliness of the overhead air supply, reducing the risk of secondary dust settling in the spraying area.

Many customers, when choosing filter materials for the top of a paint booth, prioritize efficiency.

However, in actual use, the real determining factor is often not just "whether it can block the airflow," but rather:

How long can it block the airflow? How quickly does the pressure differential rise? How frequently does it need to be replaced? Does it quickly fail when encountering highly viscous paint mist? Does the fan and system operation become unstable due to filter material failure?

From this perspective, the value of HBDPA ceiling filter cotton is mainly reflected in four aspects:

1. High capture efficiency

It achieves a capture efficiency of up to 99.8% for particles larger than 10 microns, making it suitable for systems with higher requirements for the cleanliness of the airflow from the top of the paint booth.

2. Slow pressure differential rise

The special fiber arrangement and bag-like structure allow for more uniform airflow, maintaining low resistance for a longer period even in continuous spraying environments.

3. Longer service life

Compared to ordinary flat paint mist filter cotton, it is less prone to rapid clogging under continuous operating conditions, thus significantly reducing the frequency of replacement.

4. More resistant to sticky particles

It has a stronger load-bearing capacity when dealing with easily adhering paint mist particles, making it more suitable for high-load environments such as spray booths.

•This product is primarily suitable for installation in:

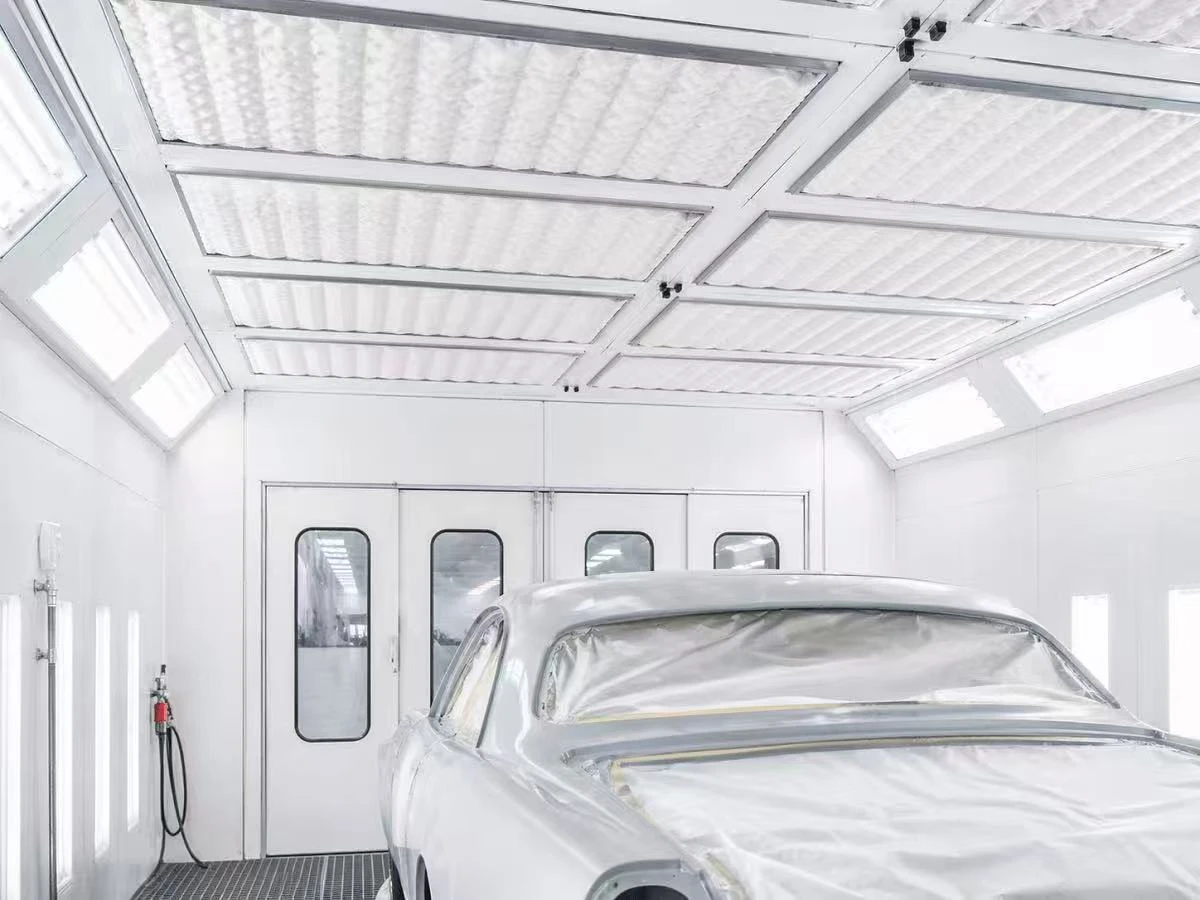

•Top air supply sections of paint booths

•Air filtration sections in spray painting lines

•Top filtration systems in automotive paint booths

•Air supply systems for furniture spray painting

•Clean air supply areas for industrial spray painting

It is better suited to the role of "the final large-area paint mist control before air supply," rather than replacing all pre- or post-filter products.

•Large filtration area, reducing localized clogging

The diamond pocket design significantly increases the filter media surface area, preventing paint mist particles from accumulating only on the surface.

•Suitable for continuous spraying environments

More stable pressure differential over extended use, making it more suitable for continuous operation of spray booths.

•Water-resistant, flame-retardant, and structurally stable

Suitable for water-based paints and complex spraying environments; flame-retardant models are available upon request.

•Even better for high-viscosity paint mist

Stronger capacity to handle easily adhering and clogging paint particles.

•Helps reduce overall maintenance costs

Fewer replacements, less frequent spray booth downtime for maintenance, and more controllable overall operating costs.

Product Name: HBDPA Ceiling Paint Mist Filter Cotton
Product Type: Top Air Supply Filter Material for Spray Booths
Main Material: Special Synthetic Fiber
Structure: Diamond Pocket Bag Structure
Applicable Media: Solid paint, water-based paint, oil-based paint, multi-component coatings, colored paints, and high-viscosity paint mist
Filtration Efficiency: Up to 99.8% for particles larger than 10μm
Product Features: Water-resistant, flame-retardant (optional), low pressure drop, long service life, suitable for continuous spraying operations

If customers are more concerned about the following issues, this product will be more suitable than ordinary spray booth filter cotton:

•Requirement for higher top airflow cleanliness

•Continuous operation of the spray booth, making ordinary cotton replacement too frequent

•Frequency of water-based paints or high-viscosity paints

•Rapid pressure differential rise, affecting spray booth stability

•Desire to reduce maintenance frequency and lower overall consumable costs
